Maven Accessories - Premium Dispensing Wand, Auto-Shut-Off, Lever Controlled, Portion-Control-Settings

In stock
SKU: MV_L20_PREM_DISPENSING_VALVE
Regular price $ 149.99 USD
Currently Out of Stock Call for ETA
Currently Out of Stock Place Order and Call for ETA

Maven Accessories - Premium Dispensing Wand, Auto-Shut-Off, Lever Controlled, Portion-Control-Settings

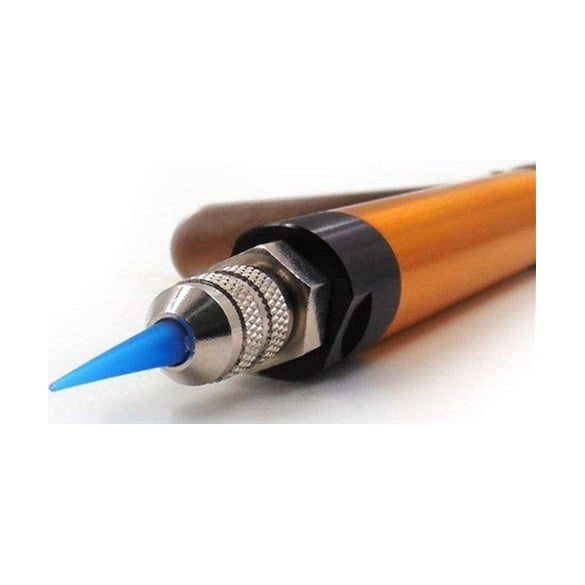

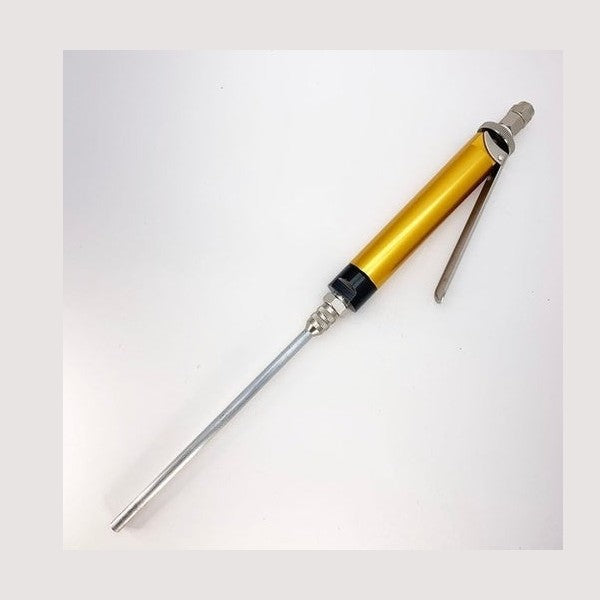

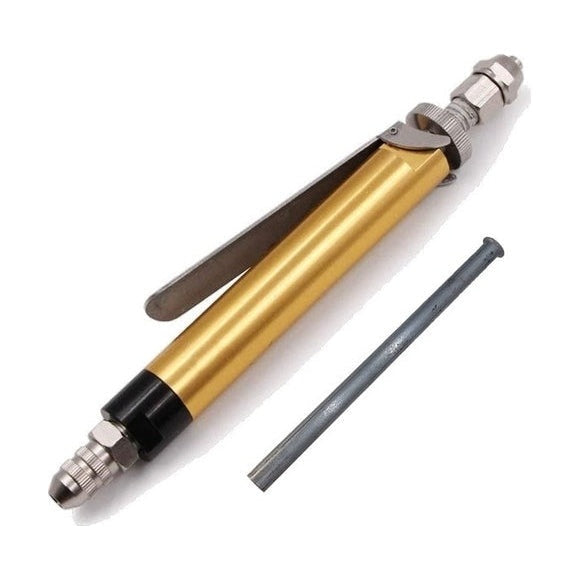

This is our premium auto-shutoff, portioning flow-configurable dispensing valve. It is wand-style to make repetitious filling jobs easier and less stressful on the operator.

Features

  • Engineered for use on the Maven Filling Machine, fits all tubing and components
  • Corrosion-Resistant Stainless-Steel inner-components
  • Anodized aluminum outer housing
  • Spring-loaded auto-shut-off operation
  • Simply depress the thimble lever to dispense, and release to stop dispensing
  • Works with All Standard (Luer-Lok) dispensing tips & dispensing needles
  • Adjustable Twist-Ring-style portioning flow-configurable settings
  • Small size, light weight, easy to operate manually
  • Cleanable and washable, easy disassembly and reassembly

Technical Specs

  • Model: MV_L20_THIMBLE_VALVE
  • Type: Thimble
  • Operating viscosity: 1 to 100,000 cps
  • Operating style: Manual control
  • Net Weight: 120g
  • Air source: 4-7Kgf/cm
  • Minimum discharge: 1ml
  • Materials: Stainless Steel inner components, Anodized Aluminum outer housing

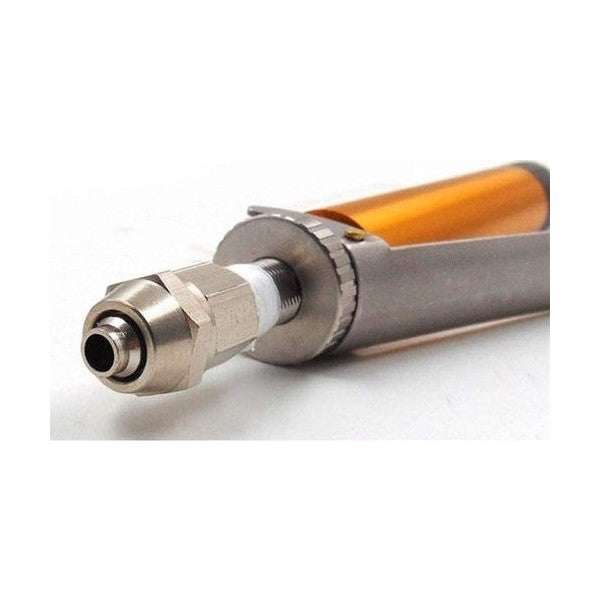

  • Inlet port size: 6mm hose
  • Outlet diameter: 3.0mm

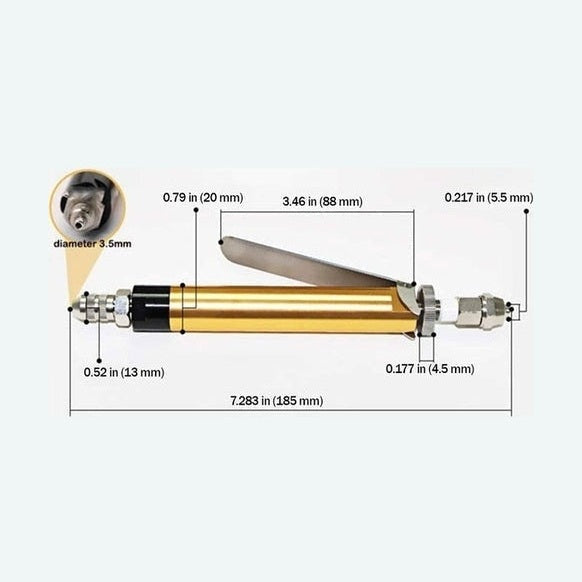

  • Total length: 185mm
  • Total outer housing diameter: 20mm
