3M Scotch-Weld DP100 Clear 3-5 Minute Fast Set Epoxy

3M ScotchWeld DP-100 3-5 Minute Extra-Fast Setting Clear Epoxy Adhesive is a fast set/cure multipurpose, two-component, room temperature clear Epoxy adhesive of good strength and toughness.

It is an excellent bonder for Steel (ferrous and stainless), Aluminum, and many types of Plastics.

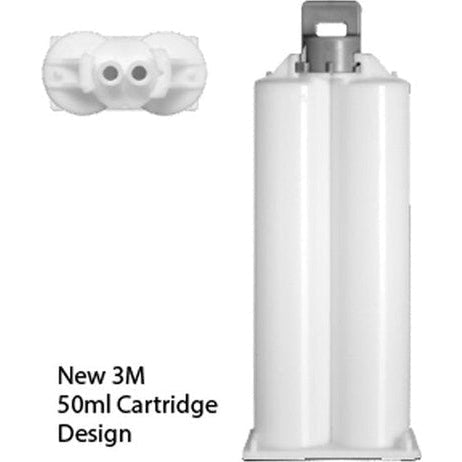

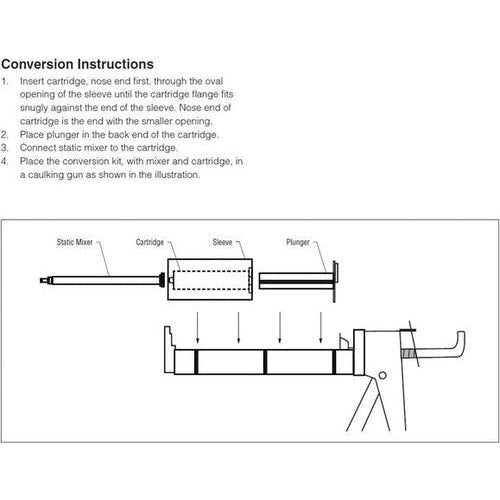

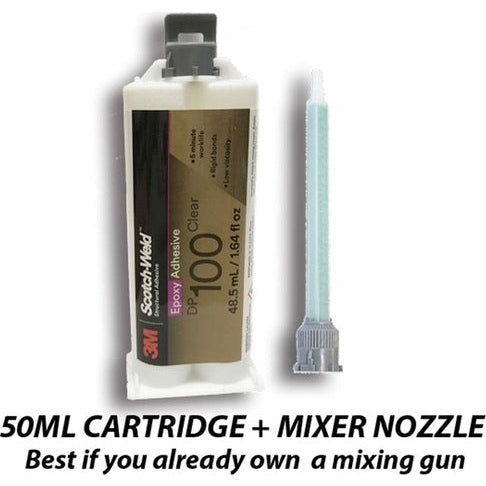

Please Note: These cartridges are designed to work best with a 50ml cartridge Dispenser. It is strongly advise you use a 50ml Dispenser for this cartridge. This 3M cartridge will fit into any standard ‘Square-Back’ Dispenser. If you do not have one, please check out the “MixPac 50ml Dispenser”.

Work Time: 3-5 minutes set

Handling Strength: 15-20 minutes

Full Cure Strength: 24 hours

Color: Clear

Viscosity: Thin Syrup (8,000 to 17,000 cps)

Typical Uncured Physical Properties Note: The following technical information and data should be considered representative or typical only and should not be used for specification purposes.

Viscosity Base 8,000-15,000 cps Accelerator 10,000-17,000 cps

Color Clear/Lt. Amber

Net Weight Base 9.5-9.9

Mix Ratio (B:A) Volume : 1 1

Worklife 10 g mixed 5 minutes 5 minutes (Gel time3)

Typical Cured Physical Properties Physical: Color Clear Shore D Hardness 80-85

Time to Handling Strength 15-20 min. @ 23°C (73°F)

Cure Time 24-48 hours @ 23°C (73°F)

Thermal: Wt. loss by Thermal 5% @ 307°C (585°F)

Gravimetric Analysis Glass Transition Temp7 33°C (91°F)

Thermal Conductivity 0.107 @ 46°C (115°F)

Electrical: Dielectric Strength 860 volts/mil 1100 volts/mil (ASTM D 149)

Volume Resistivity 3.5 x 1012 ohm-cm 2.2 x 1014 ohm-cm
