FUSION 2
- Complete Training of Leister Tools by Leister Trained Engineers Included in Every Order
- 360° rotating welding shoe
- Bilateral, tangle-free rod feed
- Stable, ergonomic handheld extrusion welder
- Particularly compact extrusion welder
- Lightweight
Part Numbers:
130v EU Plug: 119.200 aka 119.2
110v US Plug: 150.102
DETAILS
Simple extrusion welding

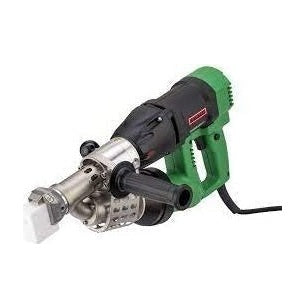

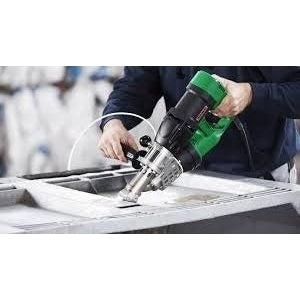

The FUSION 2 extrusion welder from Leister is equipped with bilateral, tangle-free rod feed and impresses with its 360° rotating welding shoe. It's a reliable and adaptable extrusion welder and at 45 cm (17.71 in) long, the FUSION 2 is very compact. In addition, the integrated electronics allow for a stepless setting of the output volume and pre-heating temperature. The welder is ideal for welding PE and PP with a welding rod of 4 mm (0.16 in) diameter.
VOLTAGE
120 - 230 V
FREQUENCY
50/60 Hz; 60 Hz
POWER
2600 - 2800 W
WELDING ADDITIVE
ø 4 mm / 0.16 in
MATERIAL OUTPUT Ø4 MM
1.3 - 1.8 kg/h
WELDING MATERIALS
HD-PE; LD-PE; LLD-PE; PP
AIR GUIDE
Internal
SCREW HEATING
Air heated
LENGTH
450.0 mm
WIDTH
98.0 mm
HEIGHT
225.0 mm
WEIGHT
5.9 kg
AIR TEMPERATURE CONTROL
Open loop
PLUG
CEE yellow, 3 poles, 16A; CEE blue, 3 poles, 16A; KR, 2 poles, 16A; EU, 2 poles, 16A
PROTECTION CLASS
II
CONFORMITY MARK
CE; KC
