Maven MMA 560 - Slow Set 60 minutes MMA Marine-Optimized Adhesive - White or Black, Thick/High Viscosity 1:1 ratio
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)Maven MMA 560 - Slow Set 60 minutes MMA Marine-Optimized Adhesive - Thick/High Viscosity Gray 1:1 ratio
Maven MMA 560 is a two-part methacrylate adhesive suitable for structural bonding of various metals, plastics and composites.
And works particularly well for Marine & Boat assembly & repairs. The product can be used for larger assemblies and for filling larger gaps. This is a 1:1-part methacrylate adhesive with an open time of 50 minutes to 70 minutes and handling strength can be achieved in 180 minutes - 230 minutes. Give excellent bond strength along with good toughness and high impact strength. Highly recommended in marine and other composite assemblies.
MMA 560 is a direct substitute / backup formula for the Plexus MA560.

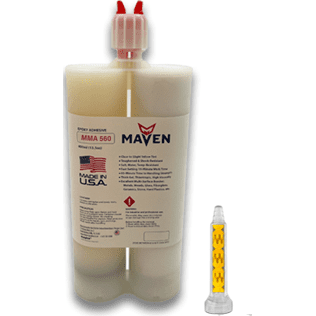

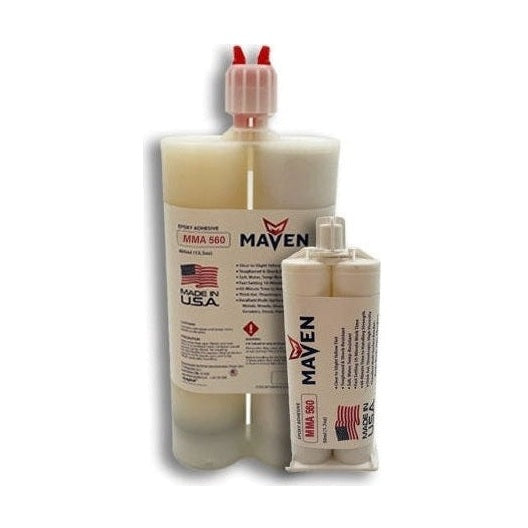

Please Note: These cartridges are designed to work best with a 50ml or 400ml cartridge Dispenser, respectively. We advise you use a 50ml or 400ml Dispenser for all respective cartridges. If you do not have one, please check out our Dispensers, all are excellent products and have our 'it's good' seal of approval.

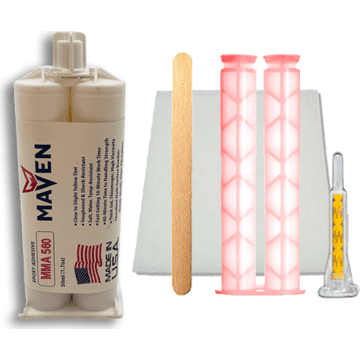

If you prefer not to use a Dispenser, we have some 50ml kits that include hand tools or caulking dispenser adapters, as pictured, that you can use for fast small jobs. But the 400ml cartridges really need to use a 400ml Dispenser, they're just too big to effectively use without the dispenser.
Key Features
- 50-70 Min Working Time (30 gm mass)
- Medium-Set MMA for Craftsman and Industrial uses
- Recommended for marine and other composite materials
- High impact strength
- Structural bonding of a variety of materials
- Gap filling 0.75mm-15mm (.03in-.60in)
- Excellent resistance to water and solvents
Cured Product Characteristics
Color: Black or White
Work life (30 gm mass): 50-70 minutes
Handling strength: 180-230 minutes
Full cure: 24 hours
Mixing Ratio: 1:1
Operating temp: -50F to 250F (-45C to 121C)
Properties of uncured material (Resin)
Specific Gravity: 1.0
Viscosity@25°C, cP: 120,000 - 180,000
Color Translucent Clear
Properties of uncured material (Activator)
Specific Gravity: 0.96
Viscosity@25°C, cP: 150,000 - 200,000
Color: Gray
Mechanical Properties
Tensile Strength: 2500-3500 psi
Lap Shear Strength, psi: 2000-2500
Modulus, psi: 70,000-120,000
Chemical resistance: Excellent resistant to hydrocarbons, acids and bases; susceptible to polar solvents.
Directions of applications
Wipe off and degrease the surface to be bonded. Use eye protection and gloves to avoid skin contact. Dispense a desirable amount of adhesive using a dispensing dispenser. The nozzle sizes can be selected according to the desired bond thickness. Join the substrates with the specified work-life of this material and allow it to cure at room temperature. Do not disturb the parts during the curing process. Excess adhesive can be wiped off. (For optimum strength, surface preparation for the metals like sandblast, etching is suggested).
Safety and handling
Wear eye protection and gloves. Harmful if swallowed. Keep it away from heat, flames. Keep out of reach of children. Once used keep the containers closed.
Storage and shelf life
Store this product in a tightly closed container in a cool and well-ventilated area. Product should not be frozen. Keep it away from any source of heat. Store the material in between 51℉ to 75℉. Continuous exposure above 75℃ will reduce the shelf life.
