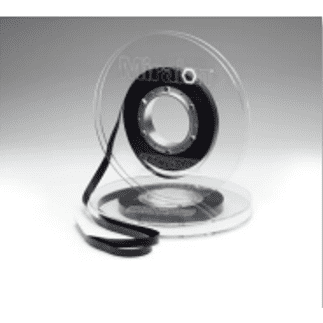

Miralon Tape Strip 5/16-in wide (0.3125 in or 8mm) Carbon (Graphene) Nanotubes (100113, T-R02A-12-0.3125)
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)Product Description
MIRALON® Sheet and Tape products are carbon-based non-woven materials that can be used in a variety of applications to lightweight and enhance product or system performance.
Using a proprietary seaming process, MIRALON® Sheets and Tapes can be delivered in any length to meet customer requirements. These products can also be post processed for specific applications. MIRALON® Sheets can be pre-pregged with a variety of resin systems or infiltrated with various polymer systems, all with industry standard equipment.
Applications
- Honeycomb core structures
- Composites
- EMI & ESD protection
- Ballistics
- FIR heating solutions
- Wire & cable shielding
- Mechanical damping
Features
- Electrically conductive
- Thermally conductive
- Flexible
- Lightweight
- High strength-to-weight ratio
- Chemically resistant
Typical Physical Properties
Unless otherwise stated, the data was compiled from typical production batches using standard test methods. These are typical values only, referencing properties of a 12 gram per square meter (gsm) condensed sheet, and do not constitute a product specification. The reported strength can vary greatly depending on post treatments. Areal densities other than the 12 gsm are available(1).
Property Value Bulk density, g/cm3 0.65
|
Areal density, g/m2 |
12(1) |
|
Thickness, μm |
20 |
|
Standard widths, cm |
0.6 – 120 |
|
Temperature operating range, ⁰C / ⁰F |
-200 to +200 / -328 to +392 |
|
Maximum processing temperature, ⁰C / ⁰F |
350 / 662 |
|
Thermal conductivity, W/m*K |
30 |
|
CTE, ppm/K |
-3.0 |
|
Surface resistivity, (Ω/□) @ 20⁰C |
1.3 |
|
Specific electrical conductivity, S*cm2/g @ 20⁰C |
600 |
|
EMI shielding effectiveness, dB @ 2 GHz |
40 |
|
Temperature coefficient of resistivity (surface), Ω*cm/K |
7.40*10-7 |
|
Specific strength, MPa/(g/cm3) |
50 - 200 |
(1)Standard ranges: 8-12gsm, 10-15gsm & 15-20gsm, custom ranges between 6 and 30gsm also available. Storage
MIRALON® Sheets and Tape should be stored in a cool, dry place, in their original package, away from direct sunlight.
