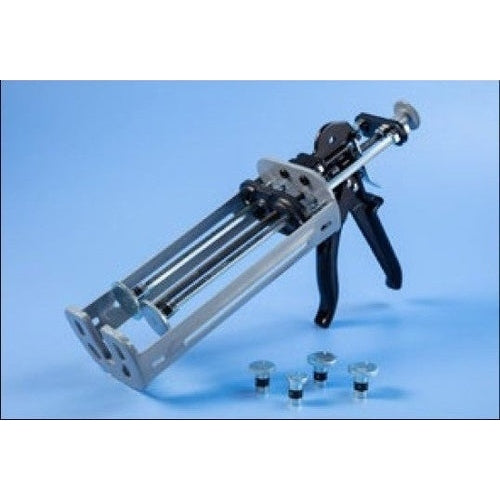

The Nordson EFD 2-Part universal multi-cartridge Dispensers/applicators, also called a two-part or two-component applicator, works with most configurations of the Ratio-Pak Multi-Ratio Cartridge System, as well as all major & popular large-format 600ml adhesive cartridges.
They have a very efficient squeeze-thrust ratio of 26:1, meaning it amplifies your hand squeezes as much as 26 times, which is great for applying very high viscosity epoxies, acrylics, foams, silicones, urethanes and other adhesives. Each pull of the trigger pushes the plunger by 5.5 mm. The steel gripper plates and push-discs provide durability, and an adjustable screw that cuts thrust gaps provides bead control.
These dispensers are easily configured, with just a couple quick adjustments, to dispense most any ratio configuration of the Ratio-Pak system.
Part Number Related Sizes
7661018 For all cartridges that do not have any 600ml or 750ml component sides. For cartridges with all sides 300ml or less. This dispenser is also known by its old Plas-Pak part number 122218.
7661019 For all cartridge sizes that are 600ml x 250ml & smaller
7661020 For all cartridge sizes that are 600ml x300ml & larger
7661021 For all cartridge sizes that are 750ml x (30ml or 75ml)
7661022 For all cartridge sizes that are 750ml x (100ml or up-to 250ml)
7661023 For all cartridges that have are 750ml x 300ml & Larger
