Nordson TAH 190-620H (7701510) Round-Helix bayonet 50ml Mixing Nozzle 20-element 6-inch H-Tapered w/ Luer-Lok Compatible Outlet (tip)
Regular price
$2.00 CAD
1578 units available
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)Nordson TAH 190-620H (7701510)

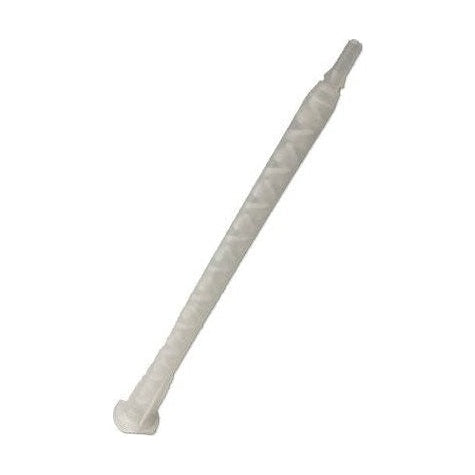

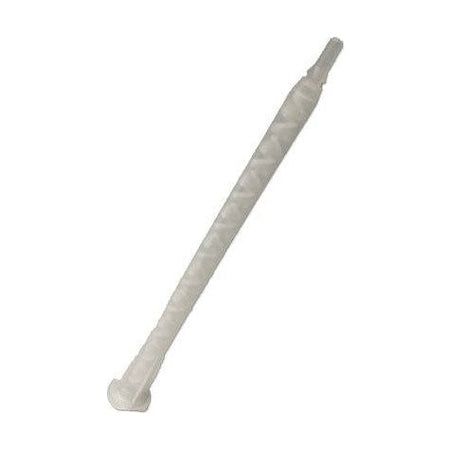

The Nordson 190-620H (now Nordson 7701510) is a traditional helix bayonet-style static mixer with 20 mixing elements and an element diameter of 6.35 mm (.250 in). This static mixer has an H Tapered tip allowing for fine adhesive dispensing. The 190-620H mixer is one of our most popular Nordson TAH nozzles for mixing and dispensing.
Highlights
- Part Number: TAH 190-620H (7701510)
- Connection Type: Bayonet
-
Luer-Lok fitting: Compatible with the Nordson Blue Luer-Lok Adapter
- Mix Ratios: 1:1, 2:1
- Cartridge Size: 50 ml, 25 ml, 75 ml
- Viscosity: Medium, High, Thixotropic & Gels
- Material/Color: Clear Plastic, with white internal mixing element
- Works with the following Branded 50ml cartridges:
- Loctite Hysol, 3M Scotch Weld, Devcon Dev-Packs & Mark5, Huntsman Araldite 2000+ Gorilla Epoxy, and all other brands that use the following 50ml cartridge types.
- Works with the following 50ml cartridge types:
- All A-System 50ml "Square-Back or Rectangle-Back" Cartridges
- Syringe Inner Diameter: 6.35 mm (.250 in);

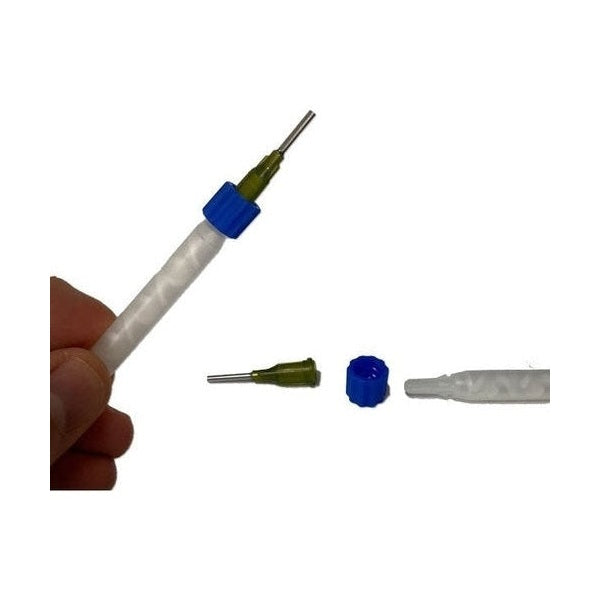

- Tip Style: smooth taper tip with Luer-Lok fitting for easy fastening of Luer-Lok Dispensing Tips.
- Tip-end hole Inner Diameter: 0.5mm/ 0.06"
- Inner Mixing Elements: 20 elements (how many mixing 'points' are found inside the nozzle)
- Total Syringe Length: 153mm/ 6"
- Package Contents vary by the Pack size you select.
- Each Pack includes the same number of mixing nozzles plus the needed inner/inside mixing assembly
