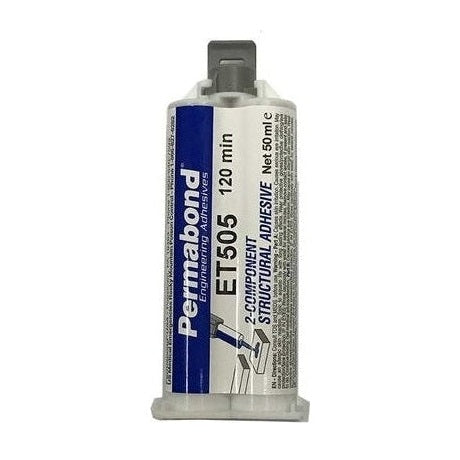

PERMABOND ET505 MIXING RATIO 1:1 SLOW SET 60 - 120 MIN TOUGH, MULTI-PURPOSE TWO COMPONENT EPOXY ADHESIVE CARTRIDGES & ACCESSORIES
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)PERMABOND ET505 is a two-part, 1:1 mixable epoxy adhesive. ET505 is a semi-flexible toughened epoxy adhesive with good adhesion to a variety of substrates such as wood, metal, ceramics and some plastics and composites. Permabond ET505 forms tough bonds providing high peel resistance and high shear strength. The extended work life of this product allows for adjustment and makes it more suitable for larger applications.
Features & Benefits
- Adhesion to a wide variety of substrates
- Full cure at room temperature
- Set time 60 - 120 min
- Easy to apply
- High shear and peel strength
- Good impact strength
- Good chemical resistance
Available Accessories

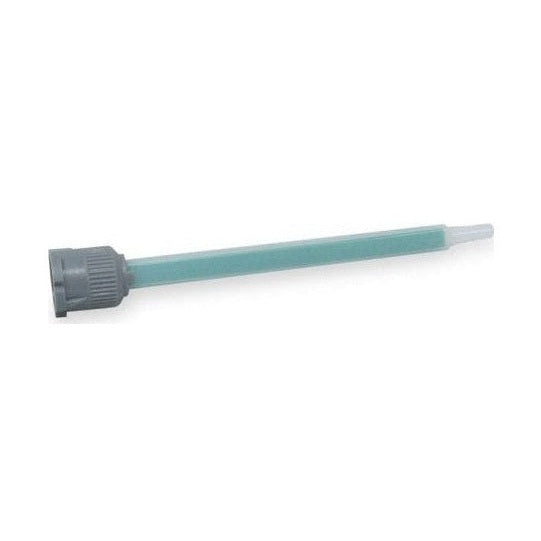

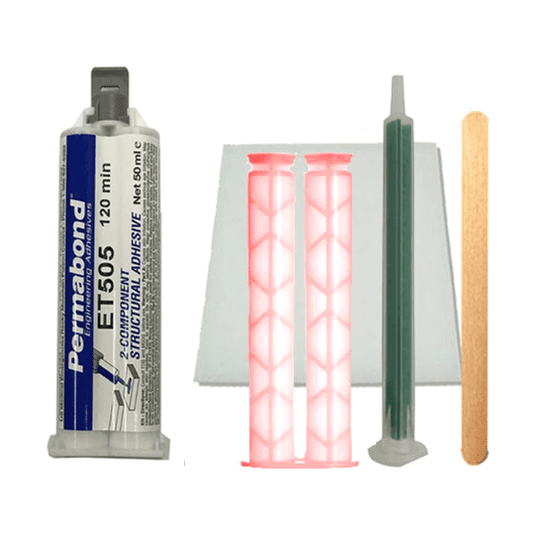

- Mixing nozzles

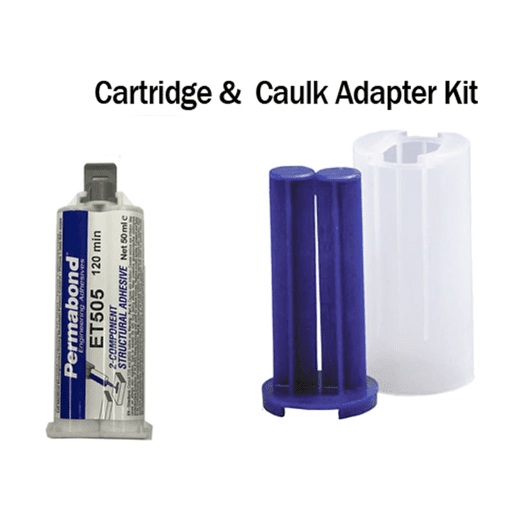

- Caulking gun adaptor

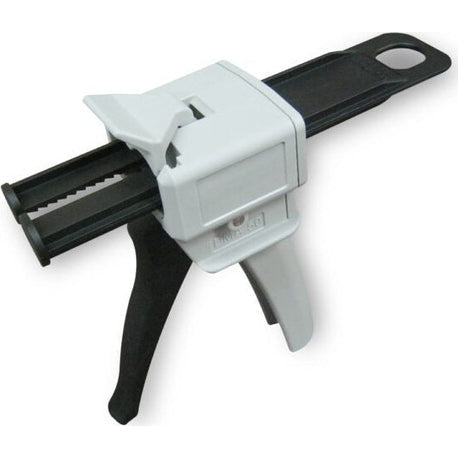

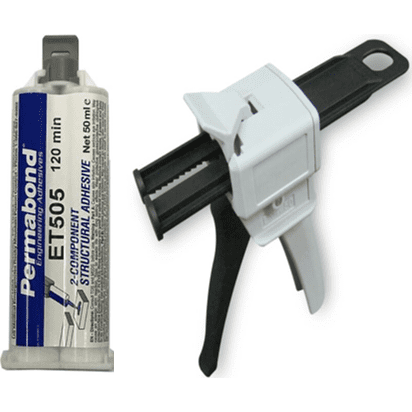

- Dispensing guns
Physical Properties of Uncured Adhesive
|
|
ET500A |
ET500B |
|
Chemical composition |
Epoxy Resin |
Amine Hardener |
|
Appearance |
Colourless |
Amber |
|
Viscosity @ 25°C |
14,000-28,000 mPa.s (cP) |
10,000-25,000 mPa.s (cP) |
|
Specific gravity |
1.1 |
1.0 |
Typical Curing Properties
|
Mix ratio by volume |
1:1 |
|
Maximum gap fill |
2 mm 0.08 in |
|
Usable / pot life @23°C |
1-2 hours |
|
Handling time @23°C |
3-5 hours |
|
Working strength @23°C |
24 hours |
|
Full cure @23°C |
72 hours |
