Leister 144.826 PreOwned Fusion 3c Extrusion Welder 144.826 230V/3200W, 4-5mm rod
Regular price
$4,336.00 CAD
Regular price
$6,612.00 CAD
Sale price
$4,336.00 CAD
This listing is for PreOwned units of the Leister Fusion 3C.
These Fusion 3C units are very well maintaned, and just came off of their annual servicing tuneups. The owner simply grew their production volume and needed to upgrade to a higher troughput welder (the beast WeldPlast 600)

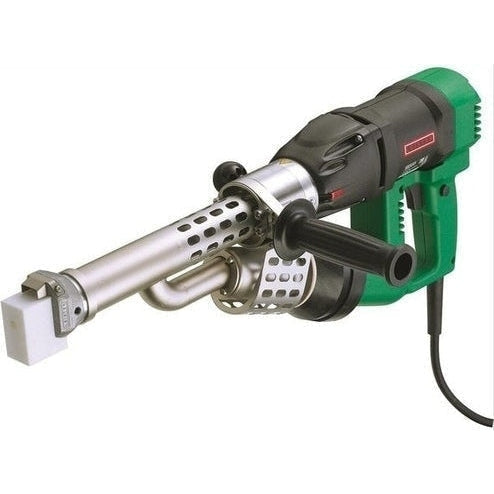

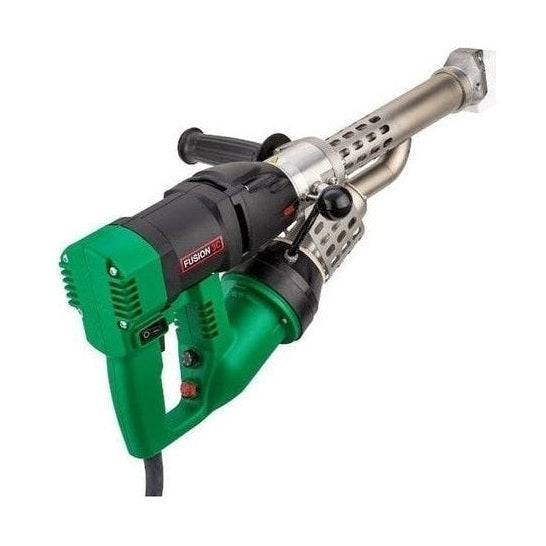

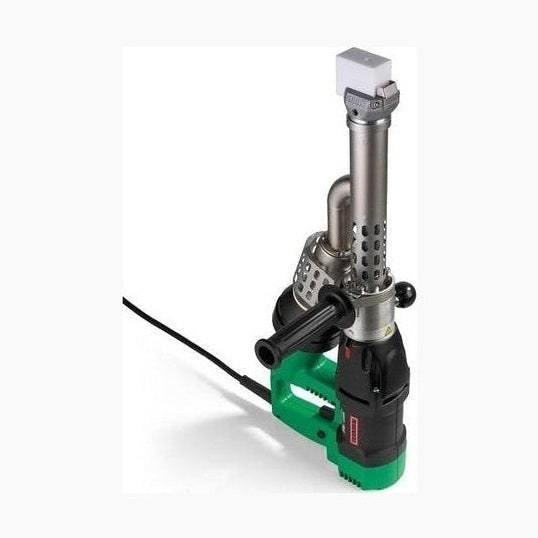

FUSION 3c (144.826)
- Complete Training of Leister Tools by Leister Trained Engineers Included in Every Order
- Up to 3.6 kg/h (8 lbs/h) output volume
- A surprisingly compact, handheld extrusion welder
- Robustly design
- Adjustment extrusion volume
- Various holding options
Part Number: 144.826
DETAILS

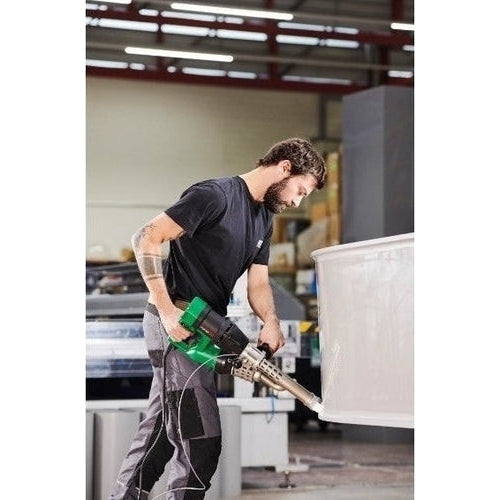

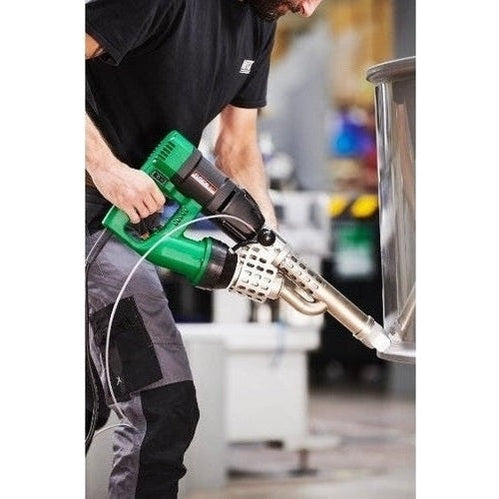

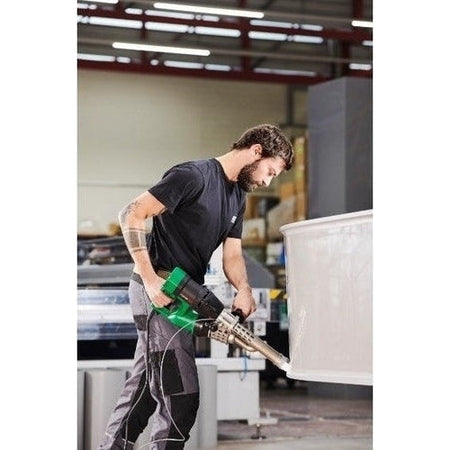

The FUSION 3C extrusion welder is great for equipment and container construction. The extruder also stands out with its sensible design. While the motor is installed on top, the handle and blower are located on the bottom of the tool. This arrangement makes the welder short and compact. In addition, it has a variety of holding options for various positions that users assume while welding. The FUSION 3C achieves an output volume of up to 3.6 kg/h (8 lbs/hr).
The difference between the Fusion 3C and the Fusion 3 is:
- The difference is all about the position of the blower moter
- Fusion 3 blower moter is horizontally positioned, and therefore makes it slightly shorter but also longer than the Fusion 3C.
- Whereas the Fusion 3C blower motor is diagnolly positioned, is slightly taller than the Fusion 3 but also slightly shorter as well.
VOLTAGE
220 - 230 V
FREQUENCY
50/60 Hz; 60 Hz
POWER
3000 - 3200 W
WELDING SHAPES COMPATIBLE
ø 3–4 mm / 0.12–0.16 in; ø 4–5 mm / 0.16–0.2 in
MATERIAL OUTPUT Ø3 MM
2.0 - 2.5 kg/h
MATERIAL OUTPUT Ø4 MM
2.1 - 3.6 kg/h
MATERIAL OUTPUT Ø5 MM
2.7 - 3.6 kg/h
WELDING MATERIALS
HD-PE; LD-PE; LLD-PE; PP
AIR GUIDE
Internal
SCREW HEATING
Air heated
LENGTH
588.0 mm
WIDTH
98.0 mm
HEIGHT
225.0 mm
WEIGHT
6.9 kg
POWER CABLE LENGTH
3.0 - 5.0 m
AIR TEMPERATURE CONTROL
Open loop
PLUG
CEE blue, 3 poles, 16A; EU, 2 poles, 16A; KR, 2 poles, 16A
NOISE EMISSION LEVEL
86 dB (A)
PROTECTION CLASS
II
COUNTRY OF ORIGIN
Switzerland (CH)
CONFORMITY MARK
CE; KC
