Maven 50ml Empty 1:1 Ratio 2-Part Cartridges with sealing cap & pistons
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)2-Part (dual-component) 1:1 ratio 50ml empty Adhesive Cartridges with included Reseal-able Cap and Sealing Pistons. Used for filling and dispensing 2-part adhesives, epoxies, silicones, urethanes, and other 2-part fluids and compounds.
Equivalent with and substitutable for:
Sulzer MixPac Cartridge Part Number: AA 050-01-10-33 , (#154840)
Nordson EFD Cartridge Part Numbers: 7702622, and 7702886 (aka BS-101-01)
Available in 3 kit packages, plus Accessories:
- Empty Cartridges and related Pistons
- Starter Kit with Small Hand Plungers
- Starter Kit with Dispenser
- Useful Additional Accessories
Each kit includes different cartridge-count options… either 5, 10, 25, 50, or 100 cartridges with the necessary cap and sealing pistons to close and seal the empty cartridges.
About the Cartridges:

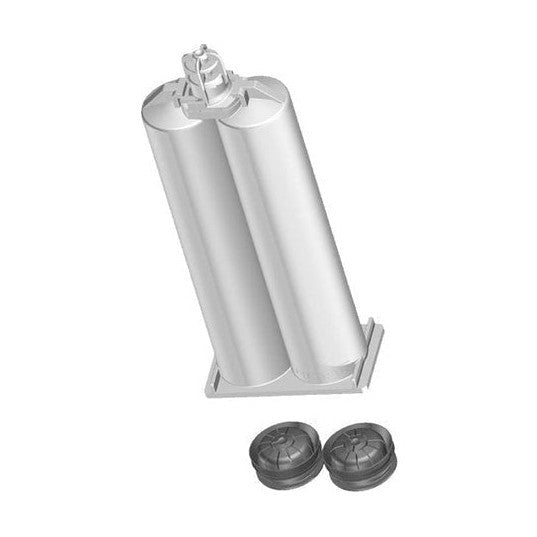

These cartridges are for storing and applying adhesives that use a 1:1 mix ratio, where precise metering and mixing is needed. These cartridges include matching pistons and a re-sealable tip (or cap). They’re ready for filling with material, storing and dispensing. These 2-Part cartridges are industrial grade and silicone free. The cartridge design/fit using the "A-System", also known as "Square-Back". They also include an easy-to-reclose cap.
The 2-Part design keeps the two adhesive parts separate, until a mixing nozzle is attached, where the two parts are pushed or extruded into the mixing nozzle and bonding or curing begins.

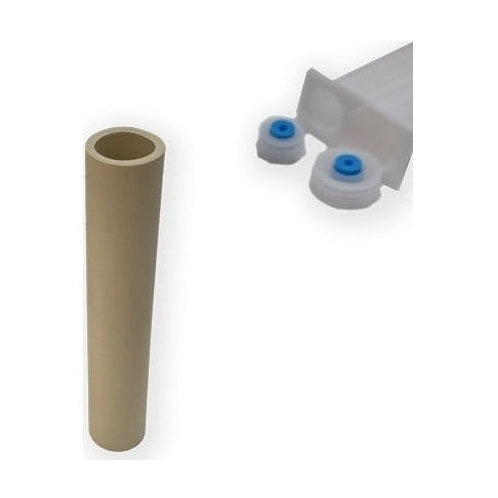

And a key feature of this cartridge is it's automatic air-escape piston system, which allows air to escape as pistons are inserted, and automatically seals-off when the piston contacts the resin inside cartridge. But a special hand insertion tool is needed to insert the air-free pistons, see the accessories above.
About the Starter Kits:

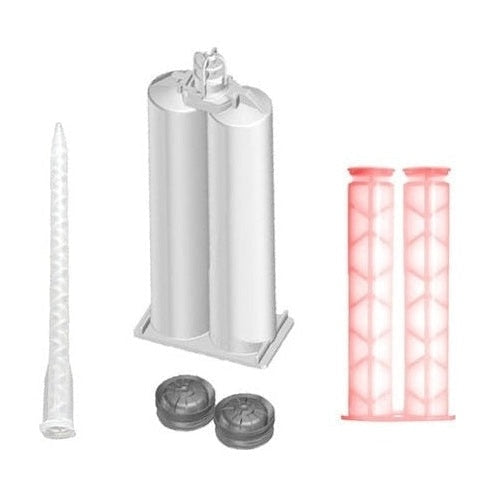

Each Starter Kit includes either 5, 10, 25, 50, or 100 cartridges, related sealing pistons and cartridge caps, mixing nozzles (one nozzle for each cartridge in your kit), and either one 50ml dispenser or small hand plungers depending on which kit you choose.
We recommend checking out our Starter Kits to get set up and running. Or if you prefer getting the dispenser separately, check out the MixPac DMA50 50ml Dispensers, which will enable you to dispense the adhesives out of these cartridge kits.
|
Total Cartridge Length (bottom to cap tip |
4 5/8 inches |
|
Barrel length |
3 13/16 inches |
|
Total cartridge width |
1 7/8 inches |
|
Barrel Inner Diameter |
0.75 inches |
|
Mixer Style |
Bayonet 50ml, Helix or Quadro/Square |
|
Total Cartridge Volume (both barrels combined) |
50ml , or 1.7oz |
