Maven EAF420 - Medium Set 20 Minute Epoxy Black or Off-White - Toughened Temp Resistant 20-Minute Set Carbon Fiber, Plastic & Metal Epoxy
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)Maven EAF420 Toughened Epoxy 20 Minute Setting epoxy adhesive is a multipurpose, two-component, room temperature epoxy with excellent toughness, flexibility, and strength.

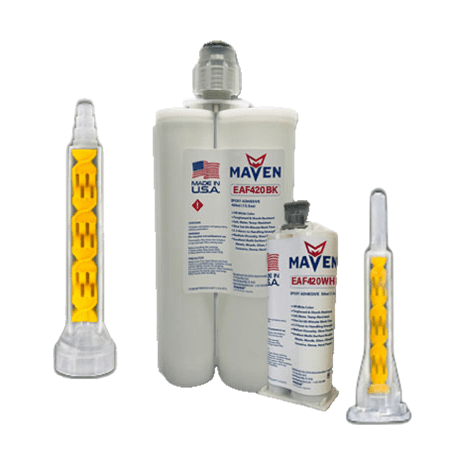

Available in Black or Off-White colors
Maven EAF420 is an excellent bonder for Carbon Fiber (CFRP), Aluminum, Steel (ferrous and stainless), and many Plastics. It also excellent with ceramic, fiberboard, glass, metal, plastic, rubber and wood materials. Additional key specifications include a 24 hour full cure time and 20 min working time. Works in a mix ratio of 2:1, and delivers great performance with a shear strength of 4500 psi and peel strength of 40-60 piw.
Substitutes and Similar Formulas:
- 3M DP420, 3M DP420NS
Also, EAF420 works well for temp spikes up to 420f. Therefore can withstand powdercoating process steps.
Key Features:
- Toughened shock-resistant
- Color: Black or Off-White depending on your preference
- Vibration resistant
- Flexible than most rigid epoxies
- 20 Min Working Time, 1.5-2 Hour Handling Strength
- Optimized for carbon fiber (CFRP) materials
- Great for metals and most plastics
- Excellent adhesive for craftsmen, DIY, and industrial users
- Excellent Shear and Peal Strength
- Electrically Insulating (does not conduct)
- Higher Viscosity adhesive (50,000 cps)
- Excellent Temperature Resistance -67F to +300F
- Can resist temperatures up to 400f for as much as 30 minutes, great for power coating process steps

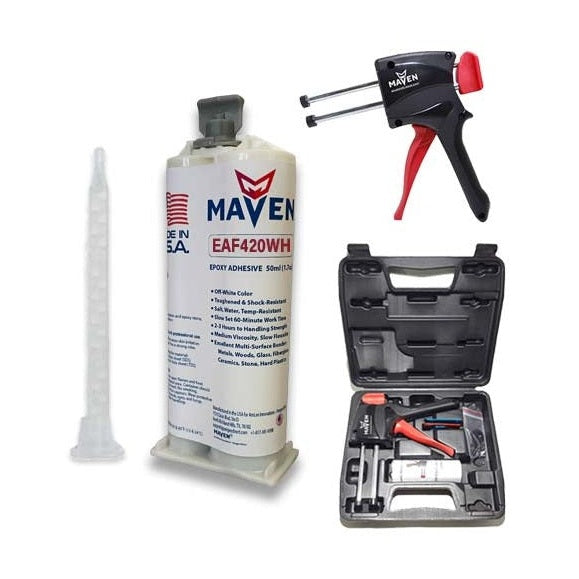

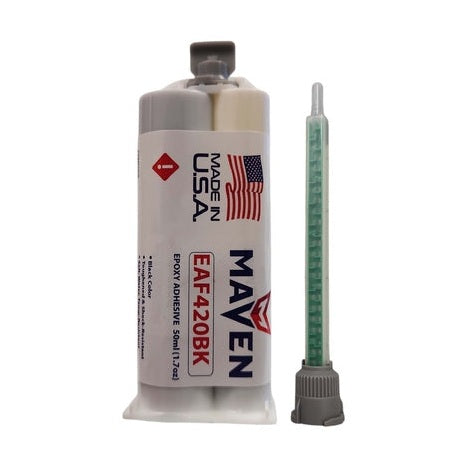

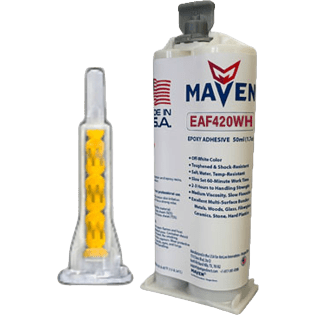

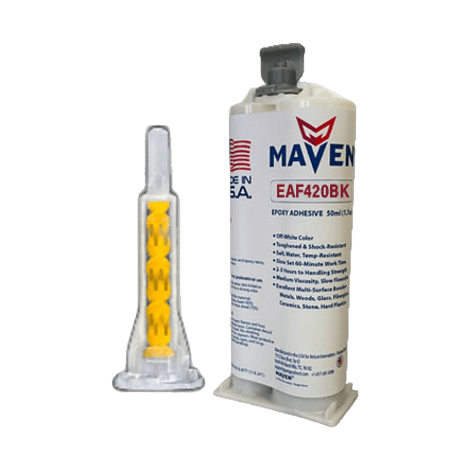

Please Note: These cartridges are designed to work best with a 50ml cartridge Dispenser. This cartridge will fit into any standard ‘Square-Back’ Dispenser. It is strongly advise you use a 50ml Dispenser for this cartridge.

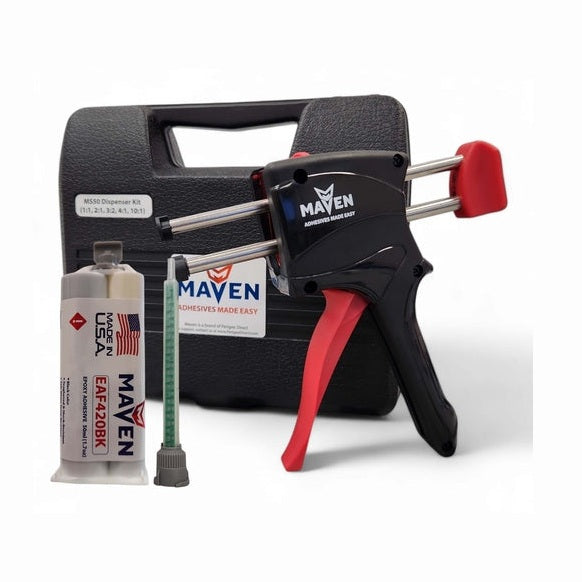

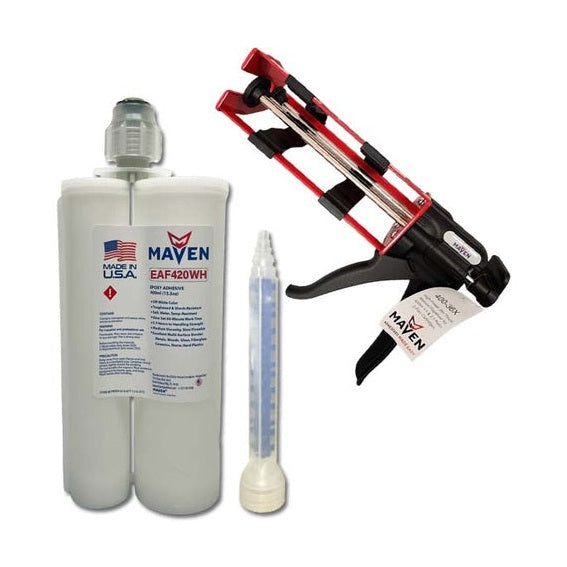

If you do not have one one of these dispensers, please check out some of the other product options to the right for this DP-100 adhesive. We do sell this as a kit with an included Dispenser. Also, separately, the “MixPac 50ml Dispenser” is a great applicator for this adhesive.
Product Performance Specs:
- Brand: Maven Adhesives
- Number: EAF420
- Material Compatibility: Ceramic; Fiberboard; Glass; Metal; Plastic; Rubber; Wood, Carbon Fiber (CFRP)
- Cure Time: 24 hr
- Working Life: 20 30 min
- Color: Black or Off-White (depends on formula needed)
- Multi-Part Adhesive: Two-Part
- Base or Accelerator: Base & Accelerator (B/A)
- Mix Ratio: 2:1
- Product Form: Liquid
- Shear Strength: 3500 psi
- Peel Strength: 4-600 piw
- Shore Hardness: 35-40 Shore D
- Viscosity Class: Medium Viscosity to Thixotropic Non-Sagging (depends on formula needed)
- Viscosity Measurement: 30000 cPs or 200,000 cPs (depends on formula needed)
- Shelf Life: 15 mo
