MedMix MCQ-08-32T - Quadro Square 24-element Low-Waste Bell-Style - for 200ml, 400ml, 600ml, 1500ml 2-Part cartridges
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)MedMix (Sulzer) MCQ-08-32T - Quadro Square 32-element Low-Waste Bell-Style - for 200ml, 400ml, 600ml, 1500ml 2-Part cartridges. Universal mixing nozzles / tips (5-inch 32-element Mixing Nozzles) for all standard C-System (Bell-Style) 2-Part epoxy and adhesive cartridges.
Specifications:
- 8mm inner diameter
- 6-inch nozzle length
- 32-element count (32 mixing cycles for the material)
- Square Quadro style nozzle tube, for less-waste and more efficient mixing
- Bell Style inlet fitting
- For Medium and Thin viscosities, 80,000 cP or less
- Recommended for Polyurethanes, Urethanes, Epoxy, Silicone, Urethane, Acrylic, Polyester
Works perfectly with all major branded adhesives that use the Bell-Style (C-System) adhesive cartridges, including C-system cartridges by Sulzer MixPac, and 2k cartridges by Nordson EFD. Each Pack includes the same number of mixing nozzles plus the related inner/inside mixing assembly

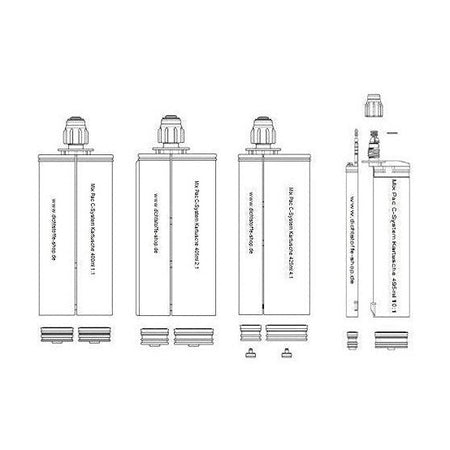

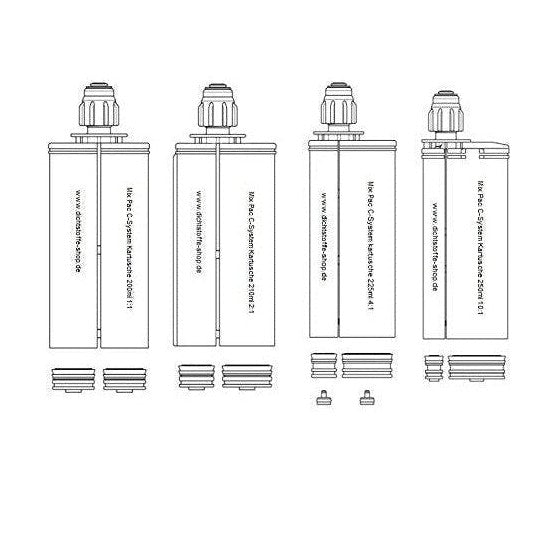

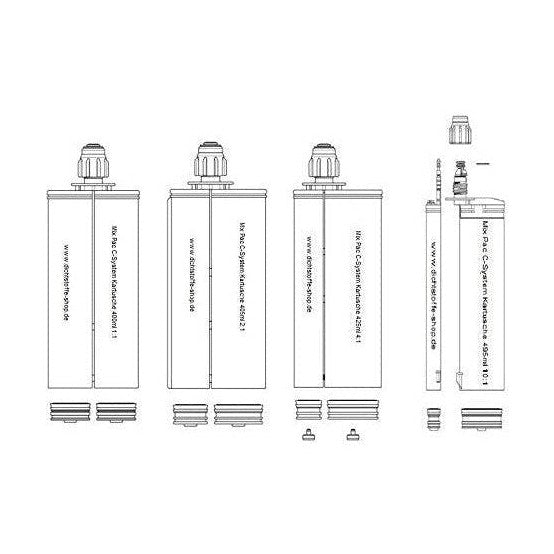

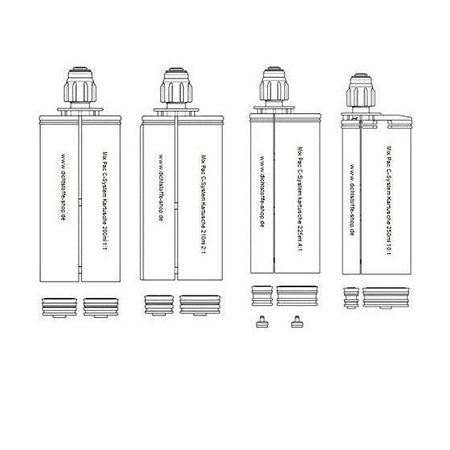

MedMix (Sulzer) MCQ-08-32T Square Quadro Mixing Nozzles are used to dispense 2-part adhesives from 200ml, 400ml, 600ml and 1500ml C-System plastic cartridges, and works with both 1:1 and 2:1 ratio formulas.
The Square Quadro design (also known as 'turbo') allows for maximum mixing in a smaller, shorter footprint. This allows users to get closer to the materials they are bonding and also leaves less wasted material in the mixer.

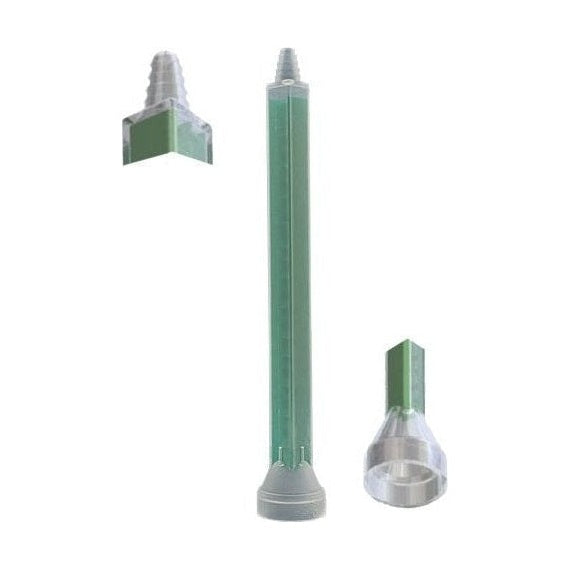

This mixer is connected with a bell outlet and has a stepped tip that can be cut to adjust the amount of adhesive being dispensed.
Use these mixers with: Epoxy, Silicone, Urethane, Foam Urethane, Acrylic, Polyesters
