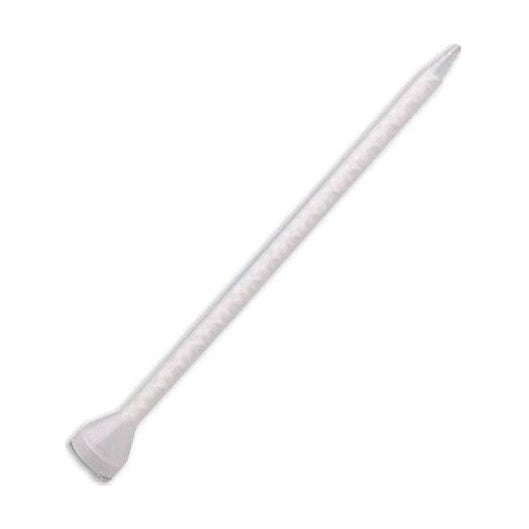

MixPac MCH 05-32T (102416) 7.4-in 32-Element Mixing Nozzle for Thin and Polyurethane PUR Adhesives-Round Helix Bell Style - 1:1 & 2:1 ratio 200ml, 400ml, 600ml, 1500ml
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)MixPac MCH 05-32T Mixing Nozzle-Round Helix Bell Style - for 1:1 & 2:1 ratio 200ml, 400ml, 600ml and 1500ml universal Bell-Style mixing nozzles (7.4-inch 5MM Inner Diameter 36-element Mixing Nozzles) for all standard C-System 200ml, 400ml, 600ml and 1500ml 2-Part epoxy and adhesive cartridges.
Specifications:
- 5mm inner diameter helix, round nozzle style
- 7.4-inch nozzle length
- 32-element count 32 mixing cycles for the material

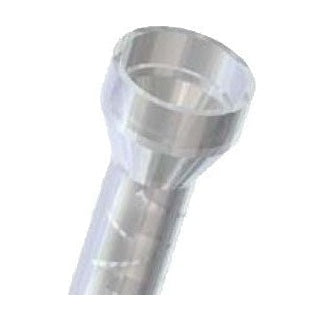

- Bell Style inlet fitting
- For all Thin and Low-Viscosity materials 10,000 cP or lower
- Recommended for Low Viscosity Polyurethanes, Urethanes, Epoxy, Silicone, Urethane, Acrylic
| Specification | Value | Specification | Value |
| Product | MCH 05-32T (102416) | Element Color: | White |
| Description | Mixer, 5mm x 32 ELE., 1:1/2:1 | Element Material | PP |
| Old Product Number | MC 05-32 | Housing Type | Cylindrical |
| # of Elements: | 32 | Housing Material | PP |
| ID* mm | 5.0 | Tip Style: | Stepped Tip |
| ID* inch | 0.20 | Attach to Cartridge | Retaining Nut |
| Length mm | 188 | ||
| Length inch | 7.40 |
* ID means inner diameter
Mixpac nozzle MCH 05-32T is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.
Typical applications for dispensing adhesive with Sulzer static mixer MCH 05-32T include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
Works perfectly with all major branded adhesives that use the larger (C-System) adhesive cartridges, 200ml, 400ml, 600ml, 1500ml, and related cartridge types. Works with all standard C-System cartridges by Sulzer MixPac, and 2k cartridges by Nordson EFD. Each Pack includes the same number of mixing nozzles plus the related inner/inside mixing assembly
The MixPac MCH 05-32T Mixing Nozzle-Round Helix Bell Style are used to dispense 2-part adhesives from 200ml, 400ml, 600ml and 1500ml C-System plastic cartridges, and works with both 1:1 and 2:1 ratio formulas.

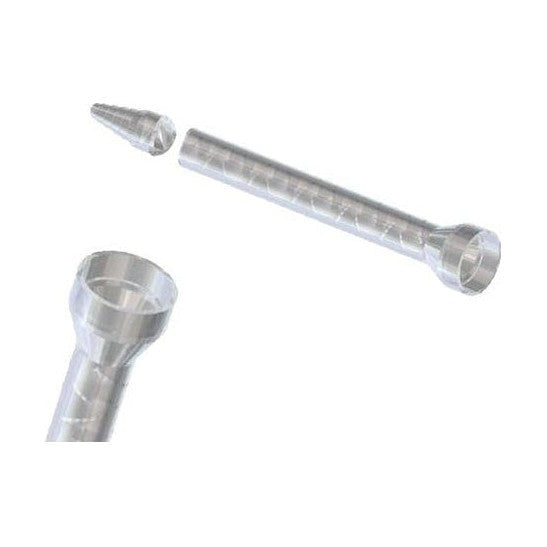

This mixer is connected with a bell outlet and has a stepped tip that can be cut to adjust the amount of adhesive being dispensed.
