MixPac MixCoat 940ML 4:1 Cartridges for MixCoat 2-part Spray Coating System (AF 940-04-14-01 or AF 940-04-30-01) (153494 or 128080)
Need Datasheets?
Click Here to visit our Datasheet Server (TDS, SDS, Fact Sheets, Selector Guides, etc)MixPac 940ML 4:1 Cartridges for MixCoat 2-part Spray Coating System.

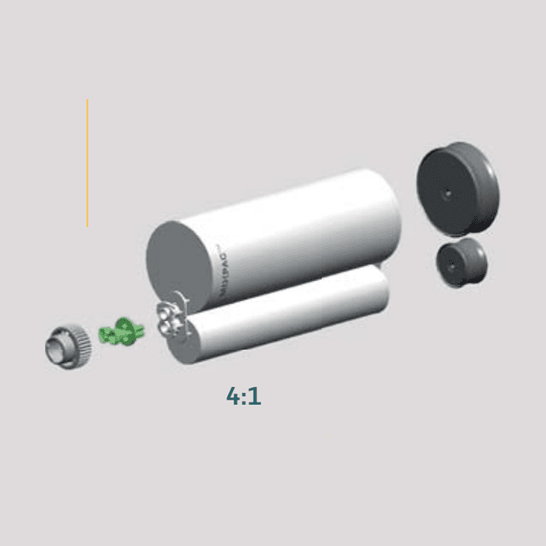

Empty 940ML 4:1 Cartridges in the F-System style for 4:1 ratio liquid spray-on coatings, adhesives, lubricants, etc. These cartridges includ the Resealable Cap, Plug and Sealing Pistons. Each cartridge includes the necessary cap and Sealing Pistons to close and seal the empty Cartridges. Mixing nozzles and other accessories sold separately above in banner ribbon
MedMix MixPac (Sulzer) Cartridge Part Number, refer to table below.
High-Density 2-Part (dual-component) 4:1 ratio 950ml empty Adhesive Cartridge, with included Resealable Cap and Sealing Pistons.
| Ratio | Volume | Part ID | Part Number | Plastic Material | Piston Style | Bulk Units / Pallet | Mixer Style |
| 1:1 | 1500ml (50.7oz) | 153493 | AF 1500-01-14-01 | PP | Self-venting | 418 | F-System |
| 166293 | AF 1500-01-14-05 | PP | Self-venting | 418 | F-System | ||
| 128218 | AF 1500-01-30-01 | PA | Self-venting | 418 | F-System | ||
| 2:1 | 1125ml (38oz) | 153469 | AF 1125-02-14-01 | PP | Self-venting | 532 | F-System |
| 128074 | AF 1125-02-30-01 | PA | Self-venting | 532 | F-System | ||
| 3:1 | 1000ml (33.8oz) | 153495 | AF 1000-03-14-01 | PP | Self-venting | 627 | F-System |
| 128216 | AF 1000-03-30-01 | PA | Self-venting | 627 | F-System | ||
| 4:1 | 940ml (31.8oz) | 153494 | AF 940-04-14-01 | PP | Self-venting | 684 | F-System |
| 128080 | AF 940-04-30-01 | PA | Self-venting | 684 | F-System |
NOTE: With these empty Cartridges, you will need additional accessories: a dispensing product and mixing Nozzles to push/extrude/dispense the adhesive out. We recommend also getting one of our 950ml Dispensers, and some F-System mixing Nozzles, which will enable you to dispense the adhesives out of these Cartridges. These empty Cartridges can be used to fill, store, and dispense.
It's perfect for storing and applying bulk adhesives that use a 4:1 mix ratio, where precise metering and mixing is needed. for example, 2-part adhesives, epoxies, silicones, urethanes, and other 2-part fluids and compounds.
These 2-Part Cartridges are industrial grade and silicone free. The Cartridge design/fit using the industrial standard "F-System" template. The 2-Part design keeps the two adhesive parts separate, until a separate mixing Nozzle is attached, where the two parts are pushed or extruded into the mixing Nozzle and bonding or curing begins.

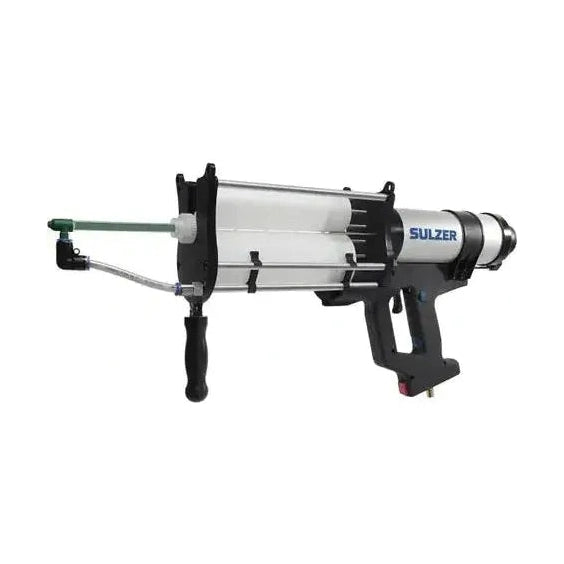

Dispensers are available for all size Cartridges either in manual of pneumatic. The “F” System is comprised of a hand-held manual Dispenser which dispenses 2-component adhesives through “F” System Cartridges and motionless mixers. Cartridge systems are available in a variety of volumetric ratios. Please be sure to select the correct ratio for your two component system.
